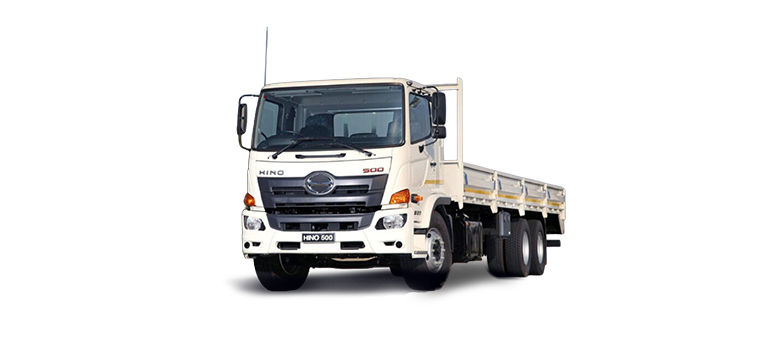

Hino 500 Series

1326 FC

The Hino 500 Series 1326 FC is a heavy-duty truck built for demanding freight and commercial transport applications. Powered by a 7.7L turbo-intercooled diesel engine producing 184 kW and 739 Nm of torque, it features a 6-speed manual transmission, a Gross Vehicle Mass (GVM) of 13,500 kg, and a 5,530 mm wheelbase. Its robust chassis and high payload capacity make it ideal for freight transport, refrigerated bodies, curtainsiders, tippers, and specialist commercial applications.

Engine

  • Manufacturer: HINO
  • Model: J08E-UD
  • 4-Stroke Compression Ignition: Yes
  • Aspiration: Turbo-Intercooled
  • Bore × Stroke: 112 × 130 mm
  • Capacity: 7,684 cc
  • Compression Ratio: 18:1
  • Configuration: Six Cylinder In-Line
  • Engine Oil Cooler: Yes
  • Euro Emission Status: Euro 3
  • Firing Order: 1-4-2-6-3-5
  • Governor (All Speed / RLD): Yes
  • Governor (Electric): Yes
  • Injector Pump: Common Rail
  • Maximum Engine Speed: 2,900 rpm
  • Number of Cylinders: 6
  • Maximum Power (EEC/ISO NET): 184 kW @ 2,500 rpm
  • Maximum Torque: 739 Nm @ 1,500 rpm
  • Type of Cylinders (Liners): Dry Liners
  • Valve Configuration: OHC

Transmission

  • Type: Full Synchromesh (2nd–6th Gears)
  • Gear Ratio (1st – Top Gear): 6.746 – 0.823
  • Gearshift Operation: Cable / Air Assist
  • Manufacturer: HINO
  • Model: LJ06S
  • Number of Forward Gears: 6
  • PTO & Control: Not Standard
  • Reverse Ratio: 6.453
  • Transfer Box Ratio: N/A
