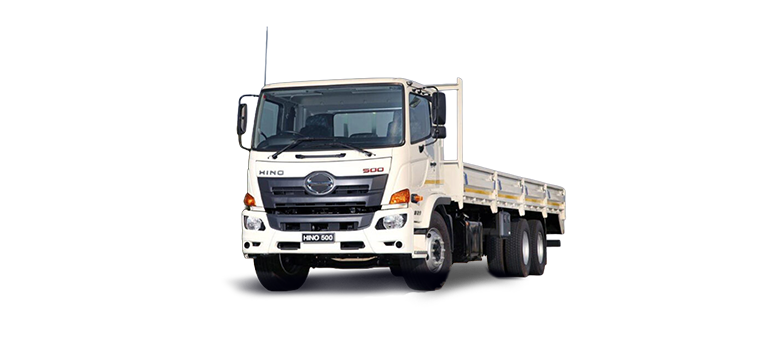

Hino 500 Series

1627 FC LWB AT

The Hino 500 Series 1627 FC LWB AT is a heavy-duty long wheelbase truck designed for high-capacity freight transport with the added convenience of a fully automatic transmission. Powered by a 7.7L turbo-intercooled diesel engine producing 191 kW and 794 Nm of torque, it features a 6-speed Allison automatic transmission, a Gross Vehicle Mass (GVM) of 16,000 kg, and a 5,530 mm wheelbase. Its durable chassis is ideal for freight transport, refrigerated bodies, distribution, and specialist commercial applications.

Engine

Model: J08E-WH
4-Stroke Compression Ignition: Yes
Aspiration: Turbo-Intercooled
Bore × Stroke: 112 × 130 mm
Capacity: 7,684 cc
Compression Ratio: 18:1
Configuration: Six Cylinder In-Line
Engine Oil Cooler: Yes
Engine Service Mass (Dry Weight): 582 kg
Euro Emission Status: Euro 3
Firing Order: 1-4-2-6-3-5
Governor (All Speed / RLD): Yes
Governor (Electric): Yes
Injector Pump: Common Rail
Maximum Engine Speed: 2,750 rpm
Number of Cylinders: 6
Maximum Power (EEC/ISO NET): 191 kW @ 2,500 rpm
Maximum Torque: 794 Nm @ 1,500 rpm
Type of Cylinders (Liners): Dry Liners
Valve Configuration: OHC

Transmission

Type: Automatic
Full Synchromesh: N/A
Gear Ratio (1st – Top Gear): 3.487 – 0.653
Gearshift Operation: N/A
Manufacturer & Model: Allison 3000 HINO MX06
Number of Forward Gears: 6
PTO & Control: Not Standard
Reverse Ratio: 5.027
Transfer Box Ratio: N/A
