Hino 500 Series

2829 FC LWB AT

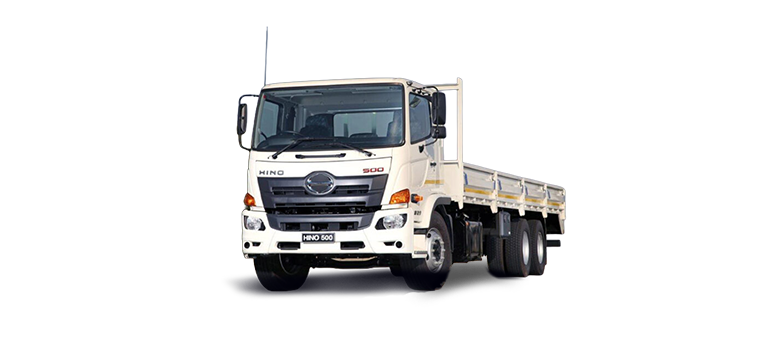

The Hino 500 Series 2829 FC LWB AT is a heavy-duty long wheelbase truck designed for maximum payload capacity and demanding transport operations. Powered by a 7.7L turbo-intercooled diesel engine producing 206 kW and 883 Nm of torque, it features a 6-speed Allison automatic transmission, a Gross Vehicle Mass (GVM) of 27,500 kg, and a 4,930 + 1,350 mm wheelbase. Its robust tandem-axle chassis is ideal for freight transport, refrigerated bodies, curtainsiders, and specialist heavy-duty commercial applications.

Engine

  • Model: J08E-WG
  • 4-Stroke Compression Ignition: Yes
  • Aspiration: Turbo-Intercooled
  • Bore × Stroke: 112 × 130 mm
  • Capacity: 7,684 cc
  • Compression Ratio: 18:2
  • Configuration: Six Cylinder In-Line
  • Engine Oil Cooler: Yes
  • Euro Emission Status: Euro 3
  • Firing Order: 1-4-2-6-3-5
  • Governor (All Speed / RLD): Yes
  • Governor (Electric): Yes
  • Injector Pump: Common Rail
  • Maximum Engine Speed: 2,750 rpm
  • Number of Cylinders: 6
  • Maximum Power (EEC/ISO NET): 206 kW @ 2,500 rpm
  • Maximum Torque: 883 Nm @ 2,750 rpm
  • Valve Configuration: OHC

Transmission

  • Type: Automatic
  • Full Synchromesh: N/A
  • Gear Ratio (1st – Top Gear): 4.593 – 0.651
  • Gearshift Operation: N/A
  • Manufacturer & Model: Allison 3500
  • Number of Forward Gears: 6
  • PTO & Control: Not Standard
  • Reverse Ratio: 4.999
  • Transfer Box Ratio: N/A
